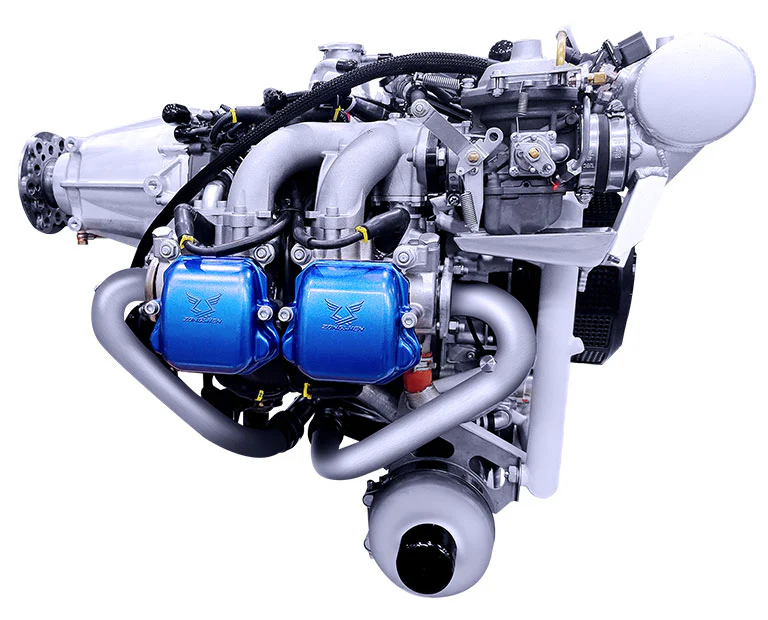

CA550T
145 HP
The Flagship Powerhouse
C145 bases on the proven concept of the Zongshen aero engine C115, Four-stroke, four cylinders, horizontally opposed turbocharged, air intake system with intercooler, Dual constant depression carburetors. The best power and high reliability, C145 aero engine can be applied to light-sport aircraft, ultralight aircraft, autogyros and light helicopters.
The standard version includes parts: The engine body (need to check with the customer whether there is an overload clutch) also includes: fuel pump (2), overflow bottle (1), fuel filter (1), air filter (1), exhaust system kit (1), oil temperature sensor (1), liquid temperature sensor (4)
Optional: Motor Mount and Motor mount ring.
Highlights
- 145 HP
- EFI
- Liquid Cooled
- TBO 2000 hrs
Specifications
| displacement | 1417 cm³ |
| dimension | 630×580×455 mm |
| bore | 86 mm |
| stroke | 61 mm |
| dryWeight | 65 kg / 143.3 lbs |
| maxPower | 80 kW @ 5800 rpm |
| alternator | 1.2 kW @ 14V |
| startMode | Electric starter |
| ignition | Digital dual ignition |
| fuelSupplySystem | EFI |
| fuel | min. RON 95 |
| cooling | Liquid cooled |
| tbo | 2000 hrs |
Technical & Certification Information








Interested in This Engine?
Request a quote and our team will get back to you with pricing and availability.
