Engines

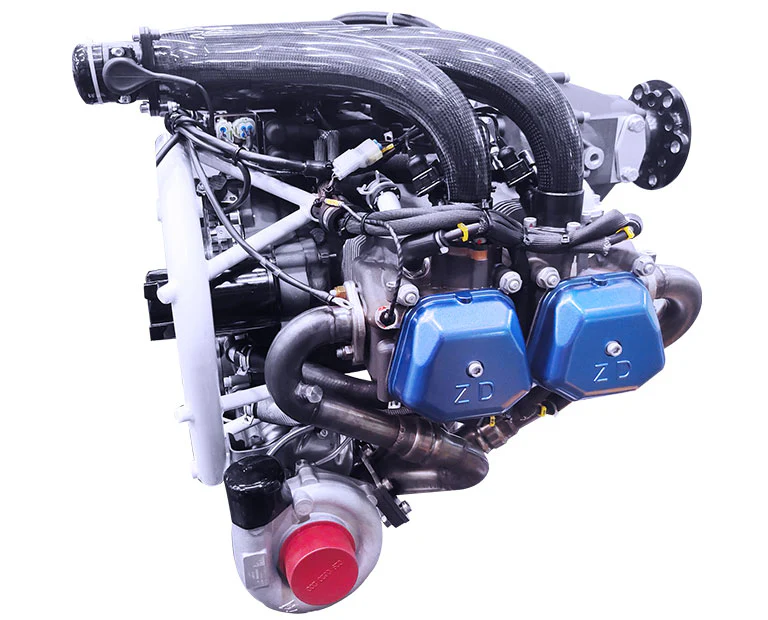

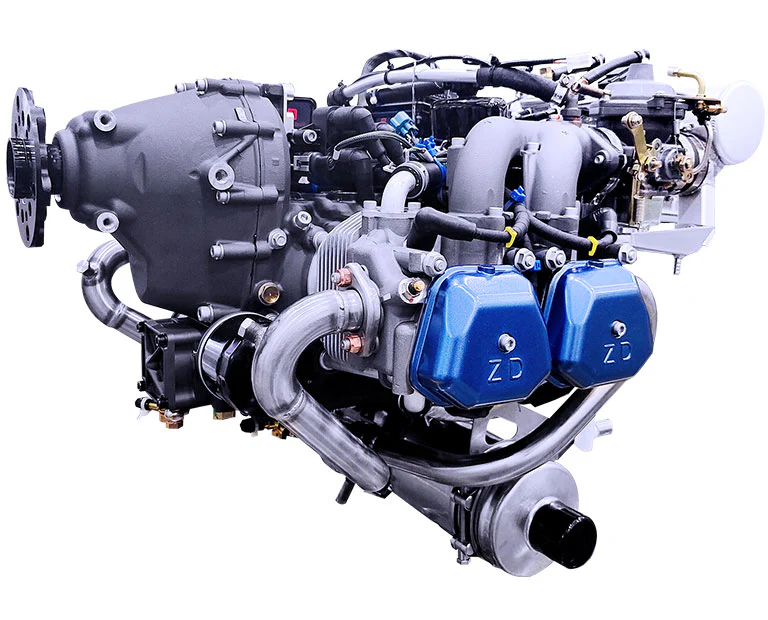

CA520T
115 HP
Proven Turbo Performance
C115 aero engine is a widely used turbocharged aircraft engine for ultralight and light-sport aircraft as well as medium altitude long endurance unmanned aerial vehicles. C115 offers more performance at high altitude and the best power to weight ratio at better than 1.134 kW/kg.
Standard version includes parts:
Engine body (need to check with the customer whether there is an overload clutch optional) also includes: fuel pump (2), overflow bottle (1), fuel filter (1), air filter (1), exhaust system kit (1)
Highlights
- 115 HP
- Turbo
- Carburetor
- TBO 2000 hrs
Specifications
| displacement | 1211 cm³ |
| dimension | 670×580×560 mm |
| bore | 79.5 mm |
| stroke | 61 mm |
| dryWeight | 74.5±1 kg / 164.24±2 lbs |
| maxPower | 84.5 kW @ 5800 rpm |
| alternator | 0.25 kW @ 14V |
| startMode | Electric starter |
| ignition | Dual capacitor ignition |
| fuelSupplySystem | Carburetor |
| fuel | min. RON 95 |
| cooling | Liquid cooled (cylinder head) & air cooled (cylinder) |
| tbo | 2000 hrs |
