Engines

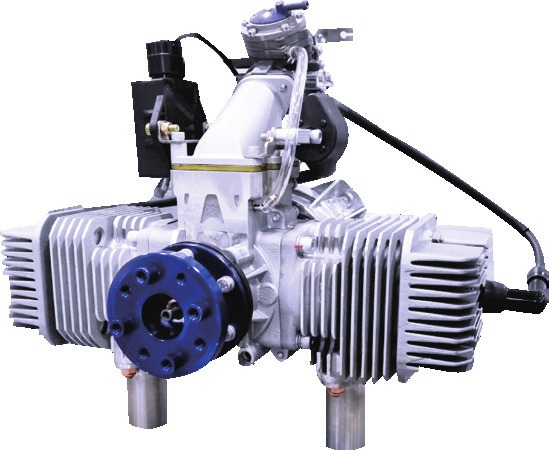

C12DI-I
12 HP
Kerosene-Powered Innovation
The C12DI-I is a groundbreaking 12 HP engine running on RP-3 aviation kerosene with air-assisted direct injection. At only 6.7 kg, it represents the pinnacle of lightweight aviation engine design for UAVs and small aircraft.
Highlights
- 12 HP
- Ultra-light 6.7 kg
- Aviation Kerosene
- TBO 250 hrs
Specifications
| displacement | 170 cm³ |
| dimension | 207×378×253 mm |
| bore | 52 mm |
| stroke | 40 mm |
| dryWeight | 6.7 kg / 14.77 lbs |
| maxPower | 10.2 kW @ 7500 rpm |
| alternator | 0.65 kW @ 28.5±0.5V |
| msfc | 345 g/kW·h |
| startMode | External electric starter / ISG / Handheld starter |
| ignition | Digital ignition |
| fuelSupplySystem | AADI (ECU controlled low pressure air-assisted direct injection) |
| fuel | RP-3 aviation kerosene |
| cooling | Air cooled |
| tbo | 250 hrs |
Technical & Certification Information
